As mentioned on the page for the B128,
the CBM-II models were Commodore's last effort to
capture the business market with it's superior proprietary technology.
All the machines in this line are distinguished by the MOS 6509 processor,
Commodore BASIC 4.0 (like that found in the later
CBM/PET computers, the Commodore "SID" sound chip, IEEE-488 peripheral
compatibility, an RS232-C port, and 80 column text video capability.
Seen here is the CBM 720, the European version of the CBM 256-80 HP
computer. The 720, being a high-
profile model, also includes the ability to attach an optional 8088 or Z-80
coprocessor board, as well as the crisp built in display. A full 256k of banked
memory is also included, which BASIC fully supports for variable storage.
This particular 720,
for some reason, appears to have the beginnings of a pair of IEC (Commodore Serial)

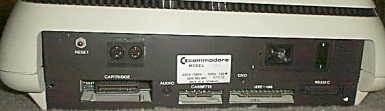

ports worked into it. Check out the "back" view in the ports area below. Also

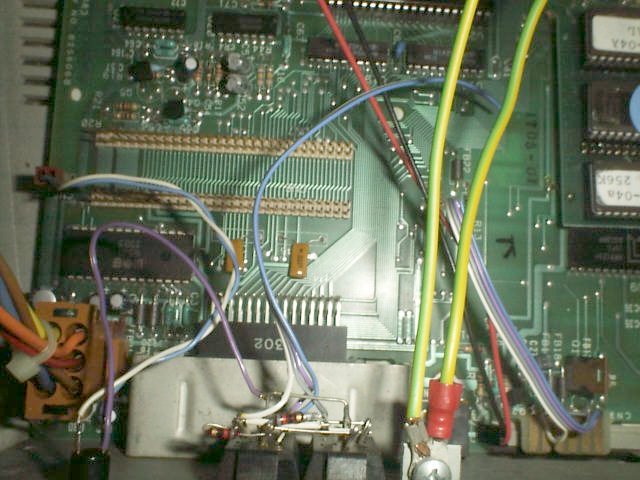

check out the internal closeup view of the IEC wireing pictured just below
(click on the image for an enlargement).

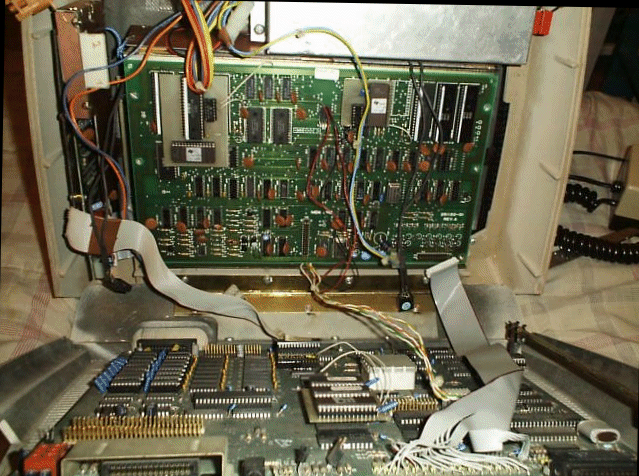

The 720-D, shown here, is identical to the 720 except for the addition of dual
CBM 8250 compatible mechanisms, with a full meg of
storage capacity on DSDD 5.25" disks.
These two models on this page represent the top of the CBM-II line.
The stylishly curved
plastic case with detachable keyboard and built in monitor are a contrast to the
rest of the CBM-II models, giving them their "High Profile"
Statistics, features, and CBM-II machine resources:
CPU: MOS 6509
RAM: 256 Kilobytes
- Expandable to 704k external
ROM: 24 Kilobytes
Video: MOS 6545 CTRC
Sound: MOS 6581 SID
- Monitor: 12" Monochrome display
- Text: 80 columns, 25 rows.
- 3 voice stereo synthesizer/digital sound capabilities
Ports: CSG 6551/6525x2/6526
- Male edge-connector IEEE-488 port
- Male edge-connector CBM Datasette port
- Female RS232 port
- Female edge-connector CBM-II/PET-II expansion port
- 1 RCA audio port
- Power and reset switches
- Two Commodore Serial Ports?!?! Click here
Keyboard: Full-sized 102 key QWERTY
- 19 key numeric keypad!
- 4 direction cursor-pad
Personal Note:I was astonished to finally get
my hands on these beauties from eBay
